Test Controllers

Configure your products

XJTAG supplies a range of high-performance JTAG boundary scan controllers. These work with all XJTAG software, offering a fully integrated development environment for rapid test generation, real-time debug, production test execution, and in-system programming.

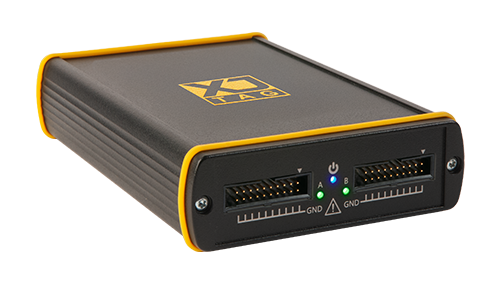

XJTAG XJLink-PF40 JTAG controller / test controller

USB JTAG controller

8 TAPs connect to 1 UUT
40 I/O pins (including TAP pins)
4 voltage banks
Configurable TAP frequencies

XJTAG XJQuad JTAG controller / test controller

4-port version of XJLink2

Tests up to 4 UUTs simultaneously
Up to 4 TAPs per UUT

XJTAG XJLink2 JTAG controller / test controller

USB JTAG controller

4 TAPs connect to 1 UUT
18 I/O pins (including TAP pins)
2 voltage banks
Lightweight & portable
Configurable JTAG port

XJTAG PXI-XJLink2 JTAG controller / test controller

PXI JTAG controller

Fits into a PXI rack for LabVIEW, LabWindows or TestStand integration
XJLink2 compatible

XJTAG XJLink2-3030 JTAG controller / test controller

JTAG controller for SPEA 3030 ICT machines

XJLink2 compatible

XJTAG XJLink2-3070 JTAG controller / test controller

JTAG controller for Keysight (Agilent) i3070 ICT machines

XJLink2 compatible
